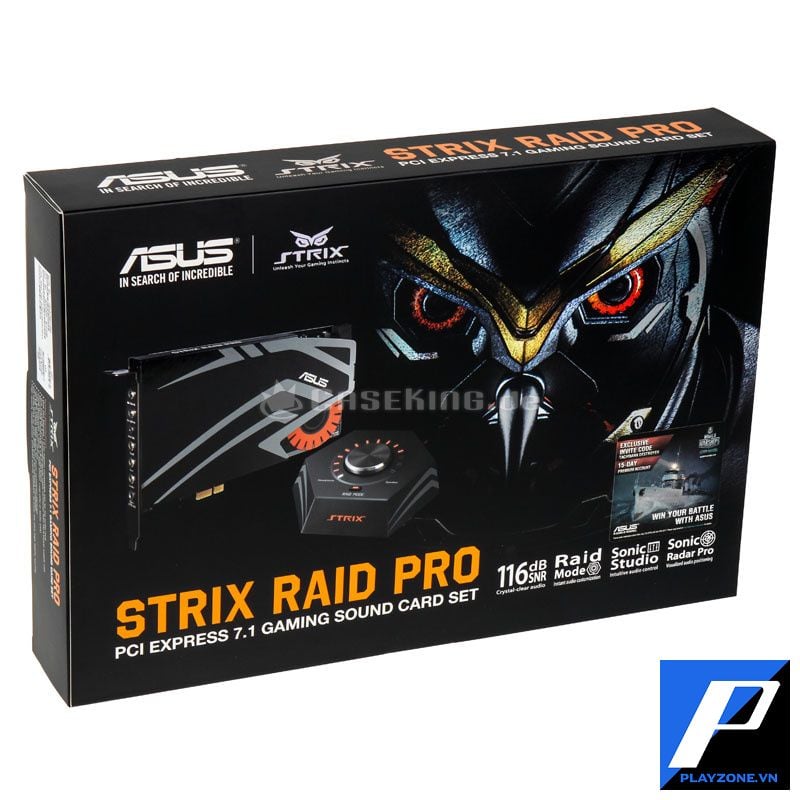

Soundcard Asus Strix 7.1 PCIe Raid Pro

THÔNG SỐ KỸ THUẬT

• Audio Interface

  PCI Express

• Audio Performance

  Output Signal-to-Noise Ratio (A-Weighted):
  116 dB
  Output Signal-to-Noise Ratio (A-Weighted) (Headphone-out) :
  110 dB
  Input Signal-to-Noise Ratio (A-Weighted) :
  110 dB
  Output THD+N at 1kHz (Front-out) :
  0.001 %(-100 dB)
  Output THD+N at 1kHz (Headphone-out) :
  0.003 %(-90 dB)
  Input THD+N at 1kHz :
  0.000316 %(-110 dB)
  Frequency Response (-3dB, 24bit/96KHz input) :
  10 Hz to 48 KHz
  Output/Input Full-Scale Voltage :
  Line output (RCA, 3.5) : 2 Vrms (5.65 Vp-p)

• Chipset

  Audio Processor :C-Media USB2.0 6632AX High-Definition Sound Processor (Max. 384KHz / 24bit)

• Digital-to-analog Converter(DAC)

  ESS SABRE9006A Premier 8 Channel Audio DAC

• Sample Rate and Resolution

  Analog Playback Sample Rate and Resolution :
  44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
  Analog Recording Sample Rate and Resolution :
  44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
  S/PDIF Digital Output :
  44.1K/48K/96K/192KHz @ 16bit/24bit
  ASIO 2.0 Driver Support :
  44.1K/48K/96K/192KHz @ 16bit/24bit with very low latency

• Connectivity

  Analog Output
  5 x 3.5 mm jack (1/8") (Headphone out /Front out/Side out/Center-Subwoofer out/Rear out)
  Analog Input
  1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
  Digital
  1 x S/PDIF out ((combo with side out))

• Special Features

  Sonic Studio

• Operating System

  Windows® 10 , 32bit/64bit
  Windows® 8.1 , 32bit/64bit
  Windows® 8 , 32bit/64bit
  Windows® 7 SP1, 32bit/64bit

• Accessories

  Control box x 1
  S/PDIF optical adaptors x 1
  Driver CD x 1
  Quick start guide x 1
  Box link cable x 1

• Dimensions

  190 x 130 x 22 mm ( L x W x H )

• All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
• PCB color and bundled software versions are subject to change without notice.
• Brand and product names mentioned are trademarks of their respective companies.
